Tall Casement Windows – Maximising Light, Views, and Architectural Impact

Tall casement windows have become one of the most sought-after architectural features in contemporary residential and commercial design. Their ability to flood interior spaces with natural light, frame sweeping outdoor views, and create a seamless visual connection between inside and out makes them an enduring favorite among architects, interior designers, and discerning homeowners. SKATE's tall casement windows are purpose-engineered to handle the unique structural challenges that come with extended frame heights, delivering both exceptional aesthetics and uncompromising performance.

Structural Engineering for Extended Heights

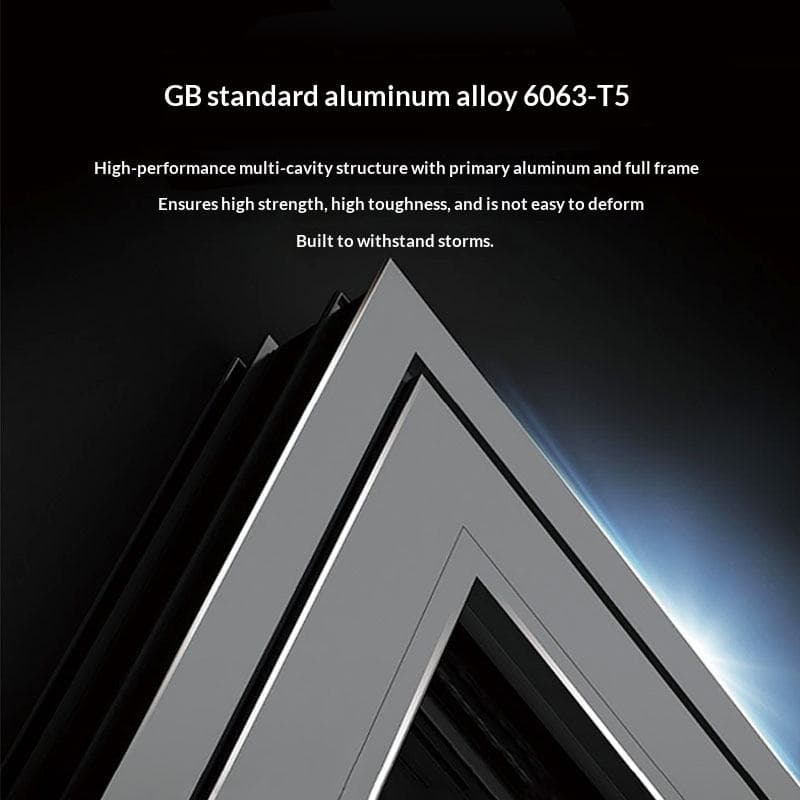

Standard casement window profiles are designed for typical residential proportions. Tall casement windows, however, demand reinforced engineering. SKATE addresses this through the use of 6063-T5 aluminum alloy profiles with wall thicknesses of 1.8 mm, supplemented by internal steel reinforcement inserts where sash heights exceed standard parameters. The result is a window that maintains perfect geometric alignment — no sagging, racking, or warping — regardless of panel height or glazing weight.

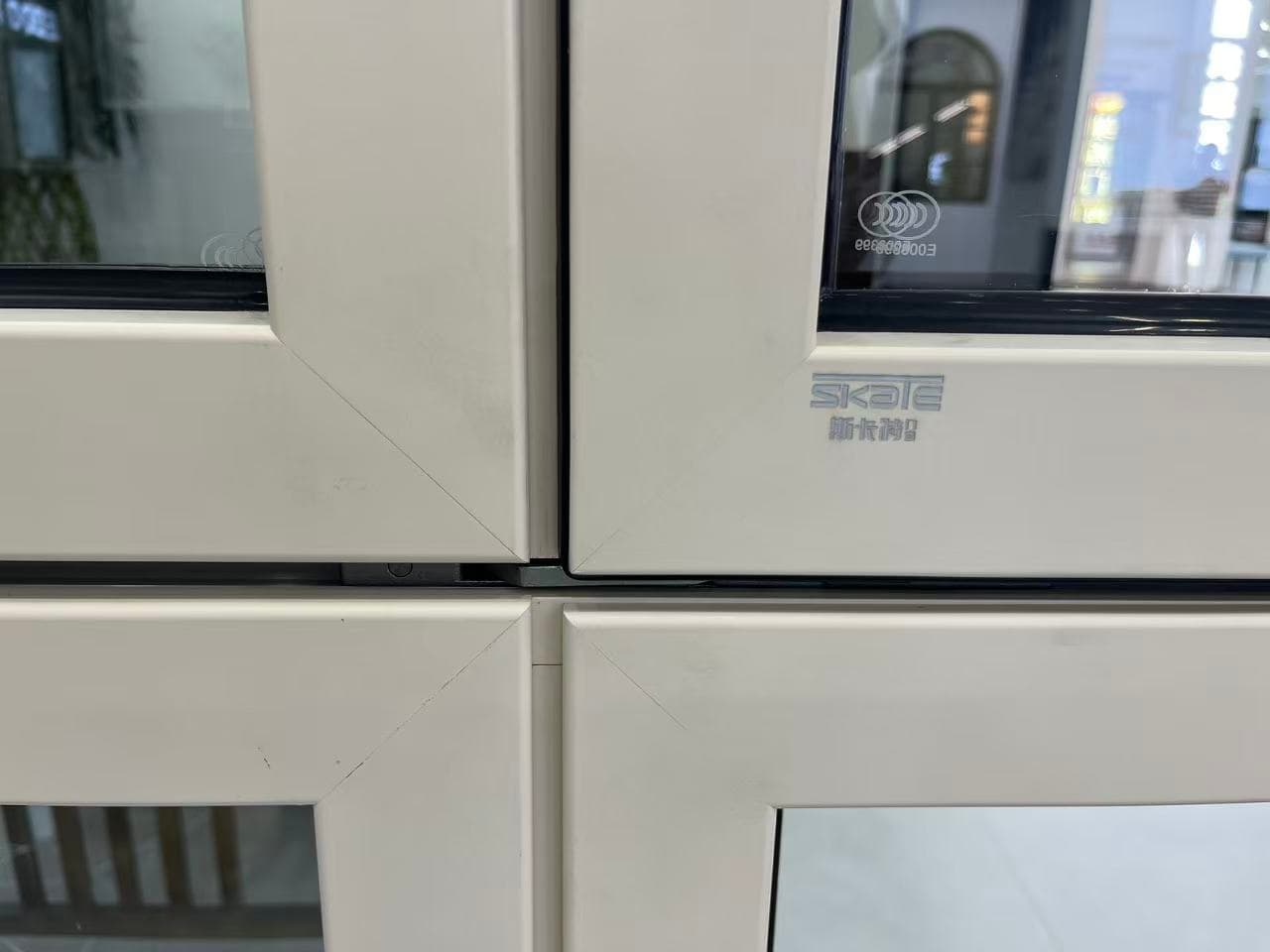

Our seamless corner welding technology, rather than mechanically crimped corners, ensures that tall casement window frames remain structurally sound and watertight for the life of the building. This manufacturing approach produces stronger corners, better appearance, and superior long-term integrity compared to assembled alternatives.

Thermal & Acoustic Performance

The PA66 GF25 thermal break strip integrated into every SKATE tall casement window profile significantly reduces thermal bridging, keeping interior surface temperatures comfortable even in extreme winter climates. Combined with triple Low-E argon-filled glazing, U-values as low as 0.8 W/m²K are achievable — well within passive house requirements. For urban environments, acoustic glazing configurations deliver Rw ratings up to 48 dB, creating a genuinely quiet interior environment even adjacent to busy roads or flight paths.

Opening Configurations

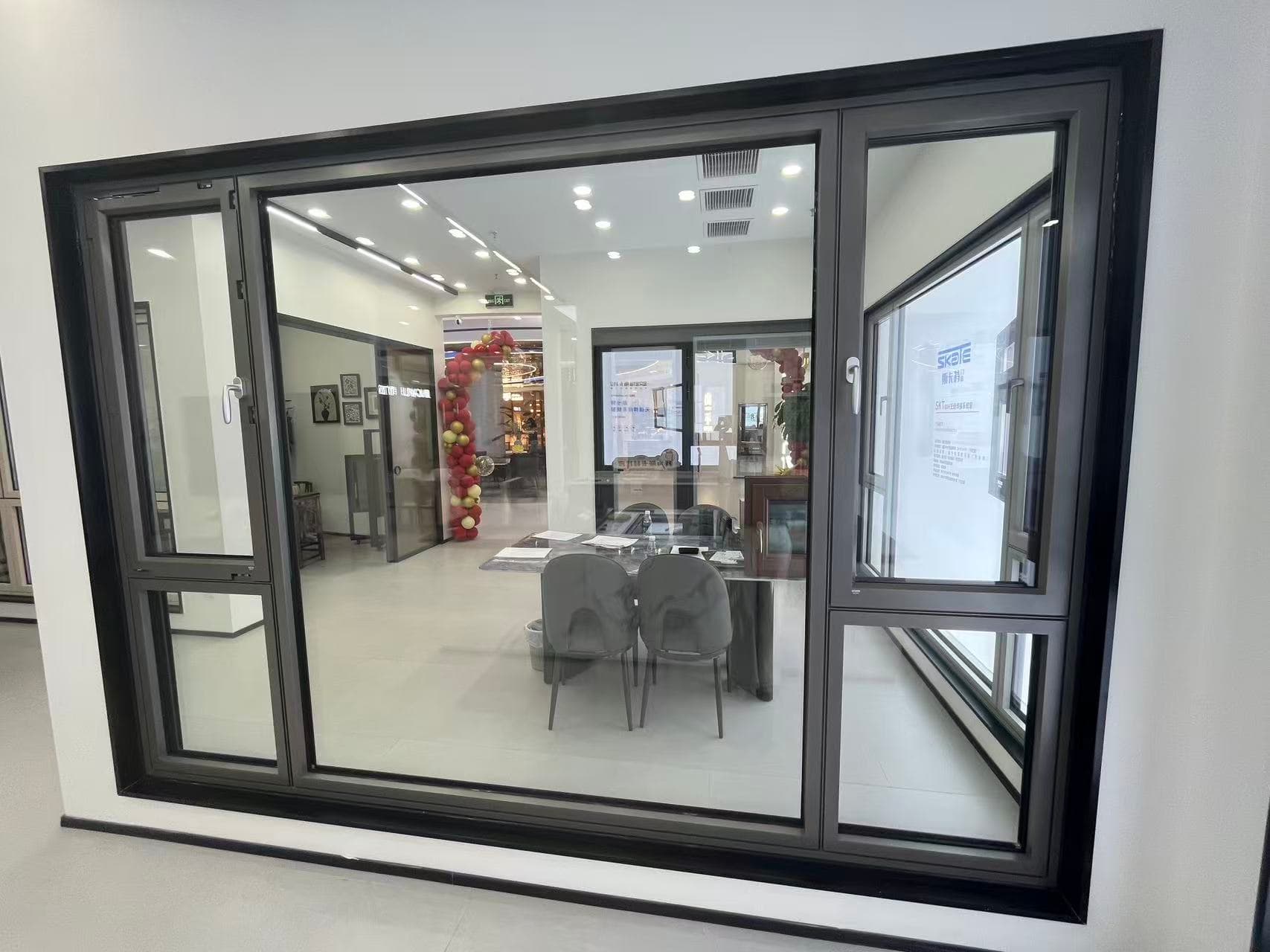

Tall casement windows can be configured as single-leaf (side-hung), double-leaf (French casement), top-hung (awning), or as a combination where an operable sash is paired with a fixed light above or below. This flexibility allows designers to specify natural ventilation exactly where it is needed without compromising the clean visual line of the tall frame.

Hardware & Security

Friction stays and multi-point locking mechanisms are fitted as standard, ensuring tall casement windows stay securely in position when open and provide robust burglar resistance when closed. Hardware options include standard and heavy-duty hinges, concealed friction stays, and smart lock cylinders — all from certified European brands.

Surface Finish Options

All RAL powder coat colors, PVDF coatings, anodised finishes, and wood grain transfer printing are available. For landmark projects, SKATE can match bespoke color specifications from architectural drawings.

Ideal Applications

Tall casement windows are specified extensively for: luxury custom homes with double-height living spaces; boutique hotels and hospitality venues; architect-designed commercial interiors; coastal and hillside properties seeking expansive views; and heritage or prestige residential refurbishments.
